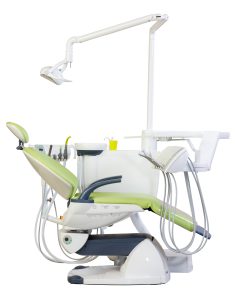

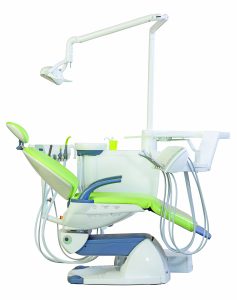

NEO Traditional

NEO Traditional

The NEO´s compact small base and movable spittoon provides more working space for both the dentist and the assistant.

REMOTE CONTROL

Fimet high-tech wireless infrastructure supports a unparalleled reputation in reliability and low maintenance values by limiting problematic mechanical moving metal and wearing rubber components. Touch-free commands to the chair and handpiece instruments provides greater hygiene and positioning of the wireless foot pedal without restriction of hazardous cords attached supports a higher degree of efficiency and safety.

COMPACT & VERSATILE

Compact design is ideally suited for areas with limited space.

UNPARALLELED VERSATILITY

Multiple chair settings enables operator to support a wider range of patients in absolute comfort, including aged and those with limited mobility. Low 45cm entry/exit with knee break setting is particularly useful with getting aged and medically complex patients in and out of and is ideal for consultancy. 2 x 4 automatic programs, adjustable backrest length, adjustable knee break setting, double articulating headrest, rotation, seat tilt and 95cm height for work standing, add to the chairs exceptional versatility. The innovative design of the cuspidor turns 90 degree sideways providing more space for the dental team to work comfortably from either side of the chair and allowing more room for the provision of sedation monitoring and other supporting equipment around the chair

FREE DENTAL SURGERY DESIGN SKETCH

Australia Wide: Delivery – Installation – Support – contact us for details.

  • NEO Traditional, hanging hoses, chair mounted
  • Chair control buttons on delivery head
  • Information display (shows micromotor speed, curing light time and clock)
  • Integrated automatic bio-film flushing system for all instruments using water
  • Handle on both sides of delivery head
  • 3 way syringe
  • Brush-less micromotor assembly Bien Air MX2 LED
  • 2 instrument modules, including turbine optic tubing
  • Double instrument tray on delivery head 04
  • Integrated automatic bio-film flushing system for all instruments using water
  • Remote cordless foot control
  • Easy to open cuspidor with doors, removable porcelain bowl
  • Cuspidor turns 90 degrees sideways
  • Clean-water bottle, clean water for syringes, instruments and glass filling
  • Height adjustment of the suction head
  • Handle on both sides of the suction head
  • High and low volume suction hoses
  • Automatic isolation suction valves
  • Slide valve for suction flow on hoses
  • Chair control buttons on suction head
  • 3 way syringe
  • Neo wet line system with bowl valve
  • Polaris LED operating light (chair mounted)
  • Neo chair 2 x 4 programs
  • Knee-break positioning
  • Chair height adjustment 45-95cm
  • Comfort memory foam upholstery
  • Dual armrests
  • Dual Joysticks, on both sides of base plate
  • Double-articulated adjustable headrest
  • Trendelenberg tilt position
  • Adjustable backrest length
  • Rotation of the chair ±45°, with locking mechanism
  • OHS free from hazardous control cords on the floor
  • 24V low voltage electrical safety to the chair motors
  • Hydraulic oil / fluid free
  • Compliant to the latest EU RoHS Environmental Safety Directives
  • Left / right operator compatible
  • Fimet manufactured products are backed by 5-10 year parts warranty - contact us for details
  • Flexible plumbing positioning in front or side of chair
  • AUSTRALIA WIDE Delivery - Installation - Support - contact us for details.
